TWIN SHAFTDRIVE 20

TWIN SHAFTDRIVE 20

The Twin Shaftdrive 20 system is a Hybrid solution suitable for 55-60ft boats. Our Hybrid systems are perfect for long passages, charters, and other light commercial vessels. The generators we use are 48VDC, which means that the generator runs the motors directly. This means the system is lighter, safer and more efficient than an AC installation. The AXC motor is liquid-cooled and is perfect for a variety of vessels. The motor does not have a single drop of oil, which also makes it maintenance free. This system is therefore very suitable for both sailboats and motorboats.

PrICE starting from: 102280€

*The price is excluding VAT, shipping, installation & certification.

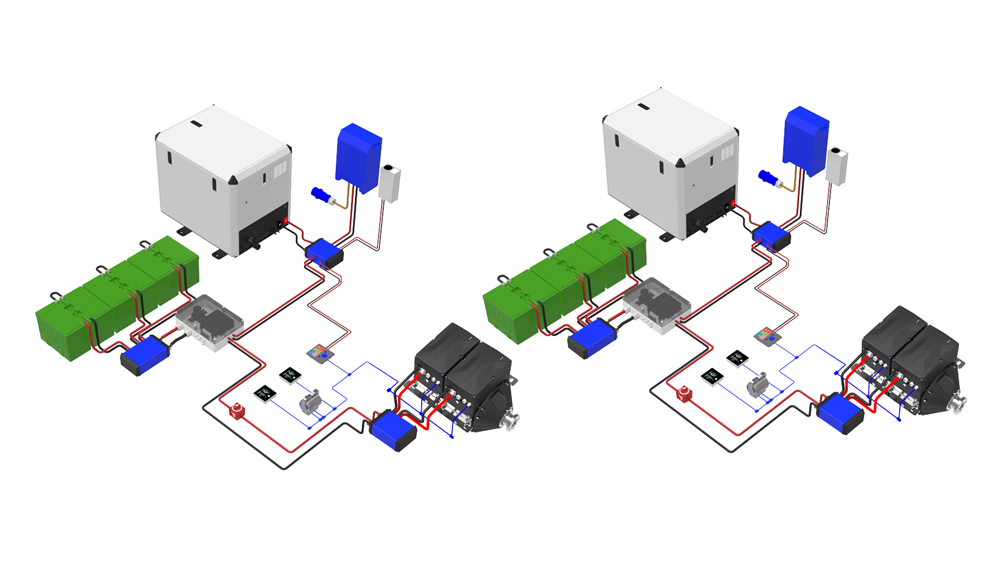

Twin_shaftdrive_20_valence_batteries

TECHNICAL SPECIFICATIONS

  • Suitable up to: 60ft/23000kg
  • Equivalent horsepower: 2 x 40-60hp
  • Range estimation: 20 nm (calculated with 21 kWh LiFePO4) / 110nm (calculated with 100l of diesel)
  • Charging time: Approximately 7,5 hours
  • Hydrogeneration at 6kn: Approximately 2 x 300W
  • Included in the system:
    • 2 x 20kW shaft drive motor
    • 21kWh Lithium battery bank
    • 22kW DC Generator
    • 2,8kW Charger
    • Hydrogeneration feature

Download more information about the system

Hydrogeneration Estimate for Twin Shaftdrive 20
